ZipaTile

ZipaTile with Z-wave and Zigbee is the complete home control system in the form of a single device. It can be easily mounted on any wall, in any home. Featuring a large number of built-in sensors and hardware modules, ZipaTile will replace numerous home devices such as a security system, thermostat, automation controller, IP camera, alarm siren or intercom and bring it all together in one, smart and beautiful device.





Total: 0
SKU: zt.zw*zbee* Categories: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

Zipatile

Unavailable

Security

  • Presence sensor
  • Noise sensor
  • Shock sensor
  • Touch keypad
  • Multi-sound  alarm siren
  • 24/7 central monitoring

Home automation

  • Remote control with smartphone
  • Online rule creator
  • Scene manager
  • Room manager
  • Z-Wave, ZigBee, Nest, Phillips Hue, Sonos, Bluetooth..

Intercom

  • SIP Server client
  • Door phone control
  • Conference calls
  • Video calls
  • Dual-network IP connectivity
  • Remote control with smartphone

Elderly Care

  • Motion sensor
  • Noise detection
  • Automatic check calls
  • Panic button with auto call
  • Sound Reminders
  • Voice and video calls

Thermostat

  • Gas/floor heating
  • Temperature meter
  • Exterior temperature meter
  • Air condition control
  • Remote control with smartphone

Wall panel

  • Room temperature
  • Room illuminance
  • Room humidity
  • Weather forecast
  • Sticky notes
  • News stream
  • Photo frame
  • Skype, email, browser
  • Scene controller with 6 buttons



IP Camera

  • 2 megapixels
  • Live video stream H.264
  • Motion and scheduled recordings
  • Remote control with smartphone

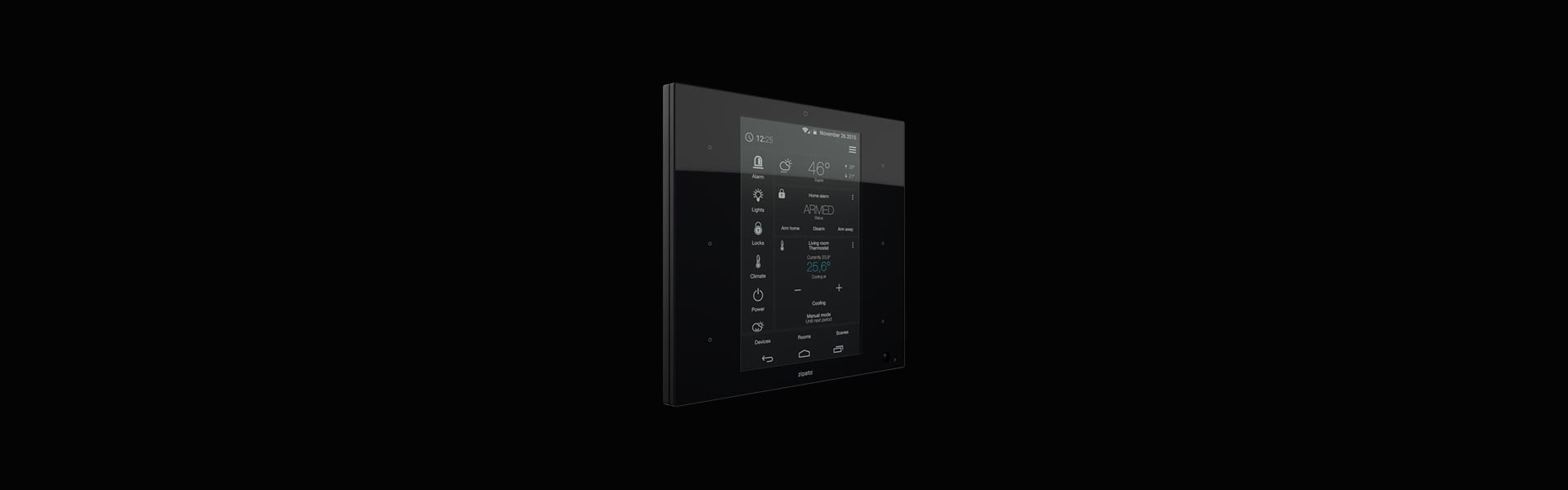

zipatile1

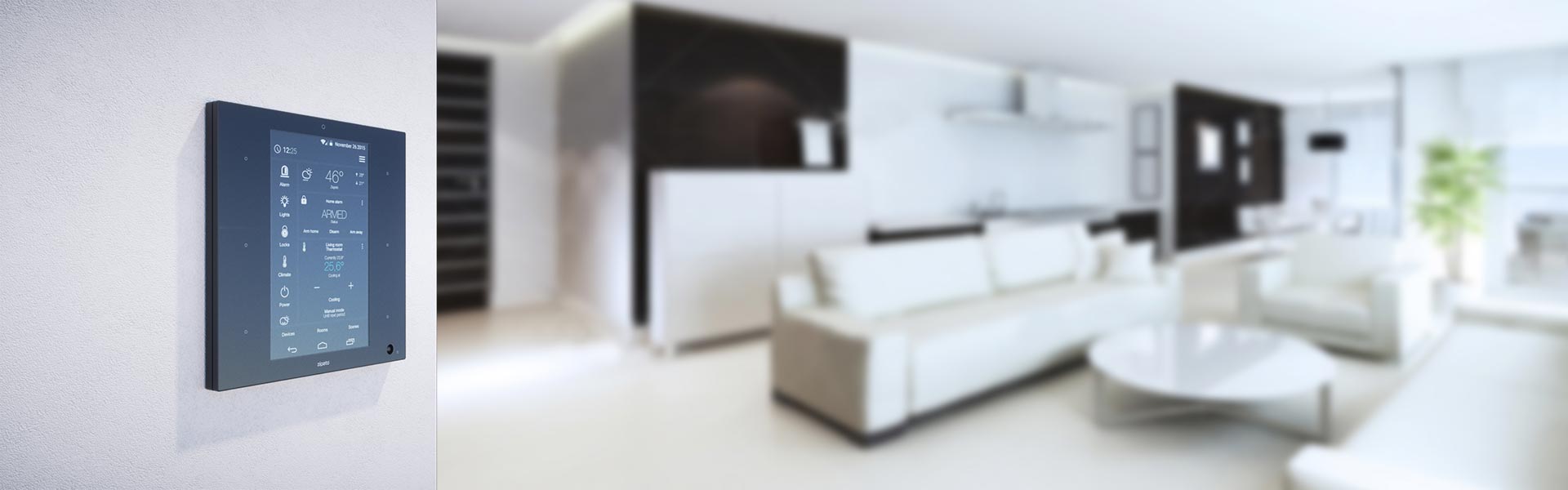

zipatileAssemble38

TECHNICAL SPECIFICATION

APPLICATIONS

  • Security system
  • Home automation
  • Elderly care system
  • Thermostat
  • Intercom
  • Room controller
  • Video surveillance and more…
  • ARM Cortex-A9, Quad-core 1.6GHz CPU
  • 1024MB RAM
  • 8192MB FLASH
  • Android 5 Lollipop

NETWORK

  • Wi-Fi 802.11 b/g/n
  • Ethernet (with optional adapter)
  • Bluetooth 4.0
  • Philips Hue
  • Sonos
  • Nest
  • Z-Wave+ 500 series
  • ZigBee HA

SENSORS

  • Noise
  • Light
  • Humidity
  • Temperature
  • Motion
  • Shock

POWER

  • Power input: 5VDC
  • Power supply input: 100-240VAC, 50/60Hz
  • Power usage:
  • Backup battery: Li-Ion 3.7V 2000mAh

INPUT/OUTPUT

  • Touch sensitive 8” screen, 800×1280 px
  • 6 programmable scene buttons
  • Dry output 230VAC, 1A (EU: 2x; US: 3x)
  • Dry input 12-24VDC (only EU version)
  • External temperature sensor (1-Wire DS18B20)
  • 2MP video camera
  • Muti-sound alarm siren
  • SD card
  • Speaker 8Ω/1.5W
  • Microphone

ACCESSORIES

  • In-Wall power supply
  • Wall socket adapter
  • Wall holder
  • Screws
  • Table stand
  • Quick start guide

PHYSICAL DIMENSION

  • 8.05(W) x 8.05(H) x 0.55(D) inches
  • 205(W) x 205(H) x 14(D) milimeters

WEIGHT

  • 584g (20.6oz)

ENVIRONMENTAL

  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: -25°C to 70°C (-13°F to 158°F)
  • Humidity: 5% to 95% non-condensing

REGULATION

  • Safety: UL power supply
  • CE, FCC, IC
  • RoHS, REACH

WARRANTY

  • 1 year standard

FAQ

What is ZipaTile?

ZipaTile is the wall mount digital touch panel based on Android OS, which has multiple sensors and communication modules integrated inside (please check the technical specifications). Powered by the powerful Zipato software platform, ZipaTile will replace multiple standard automation and control systems, such as security, thermostat, monitoring camera and so on…

How can I install ZipaTile?

ZipaTile can be easily mounted on any wall. The power plug can be used with the regular wall socket or it can be built inside the wall for more aesthetic look. Connection with the Internet can be wireless, as well as the connection with various peripheral devices if you decide to upgrade the system.

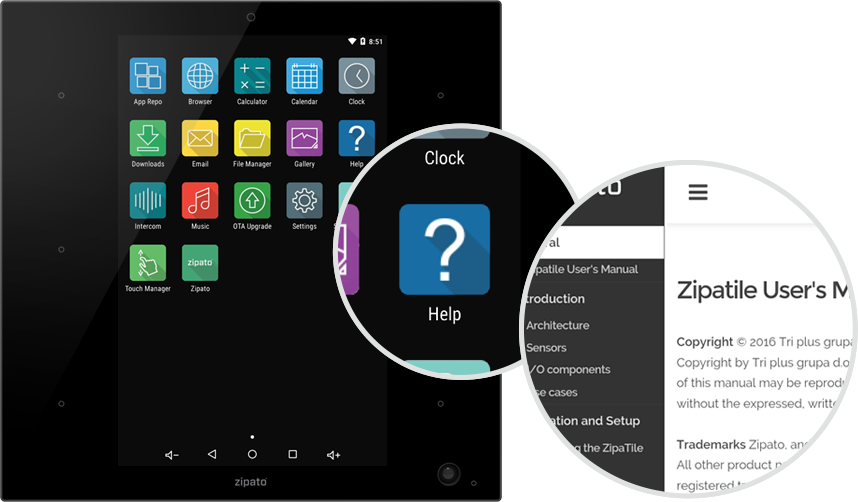

Where to find user's guide?

If you want to see installation or maintence details for Zipatile, follow the blue icon on Zipatile apps list.

You can also check online on User’s guide

How good of a security system is it?

ZipaTile has the complete security software integrated inside, and it can be controlled both locally and remotely, over any PC or smartphone. It has touch display for local control, motion sensor, noise sensor, alarm siren and IP video camera built in already. Furthermore it can be additionally upgraded by using various wireless sensors, and it has been constantly monitored by the Zipato online monitoring server.

When can I buy it?

You can buy  ZipaTile today.

Additional information

shop attributes
Weight 1.2 kg
Dimensions 23.4 × 23.4 × 5.5 cm
Frequency

AUSTRALIA – AU, AUSTRALIA – AU – WHITE, EUROPEAN UNION – EU, EUROPEAN UNION – EU – WHITE, INDIA – IN, INDIA – IN – WHITE, ISRAEL – IS, ISRAEL – IS – WHITE, RUSSIA – RU, RUSSIA – RU – WHITE, UNITED KINGDOM – GB, UNITED KINGDOM – GB – WHITE, UNITED STATES – US, UNITED STATES – US – WHITE
