Description
Zipatile2
TECHNICAL SPECIFICATION
SYSTEM
- Quad-Core Cortex ARM CPU
- Mali400 MP2 GPU
- 2GB RAM
- 8GB FLASH
- Android 8.1 Oreo
POWER
- Input: 5VDC
- Supply input: 100-240VAC, 50/60Hz
- Power usage: <2W (Idle), 7W (Max.)
- Backup battery: Li-Ion 3.7V 3500mAh
- POE (Power Over Ethernet, optional)
- HVAC power (using C wire, optional)
SENSORS
- Noise
- Light
- Humidity
- Temperature
- Motion
- Shock
NETWORK
- Ethernet (built-in)
- Wi-Fi 802.11 b/g/n
- Bluetooth 4.x
- Z-Wave+ (500 series, optional)
- ZigBee HA (optional)
- EnOcean (optional)
- 433 MHz (optional)
- ULE (optional)
- 3G/4G (cloud connection backup, optional)
- DECT
INPUT/OUTPUT
- Touch sensitive 8” screen, 800x1280px
- 3 programmable scene buttons
- 4 dry outputs 230VAC, 1A (60 W max)
- 1 dry input 230VAC
- HVAC interface (support for 2-5 wire
- thermostat installations, HVAC version only)
- RS-485 interface
- Security camera with privacy switch
- Multi-sound alarm siren, 100 dB @ 10cm
- Stereo speakers 2x1W
- Microphone
ACCESSORIES
- In-Wall power supply
- Wall socket adapter
- Wall mounting kit
- VESA mounting kit
PHYSICAL DIMENSION
- 7.9 (W) x 7.9 (H) x 0.6 (D) inches
- 200 (W) x 200 (H) x 15 (D) millimeters
ENVIRONMENTAL
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Storage temperature: -25°C to 70°C (-13°F to 158°F)
- Humidity: 5% to 95% non-condensing
REGULATION
- Safety: UL power supply
- FCC
- CE
- RoHS
FAQ

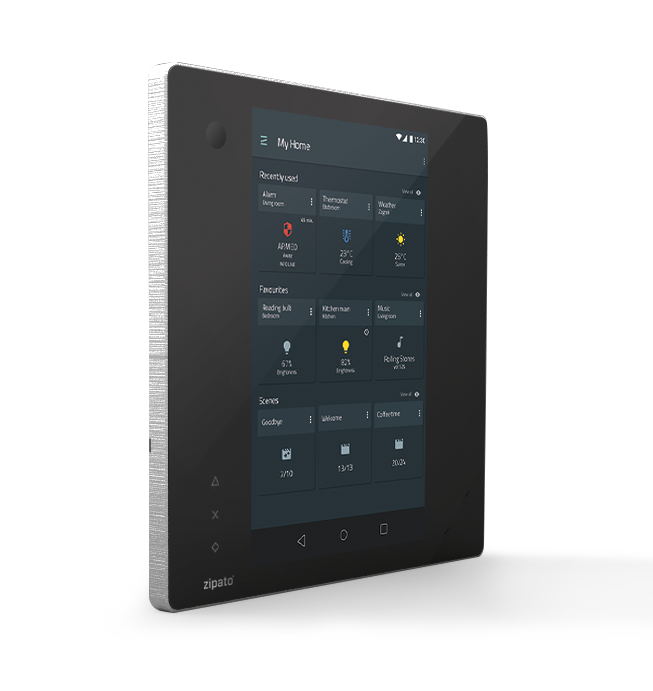

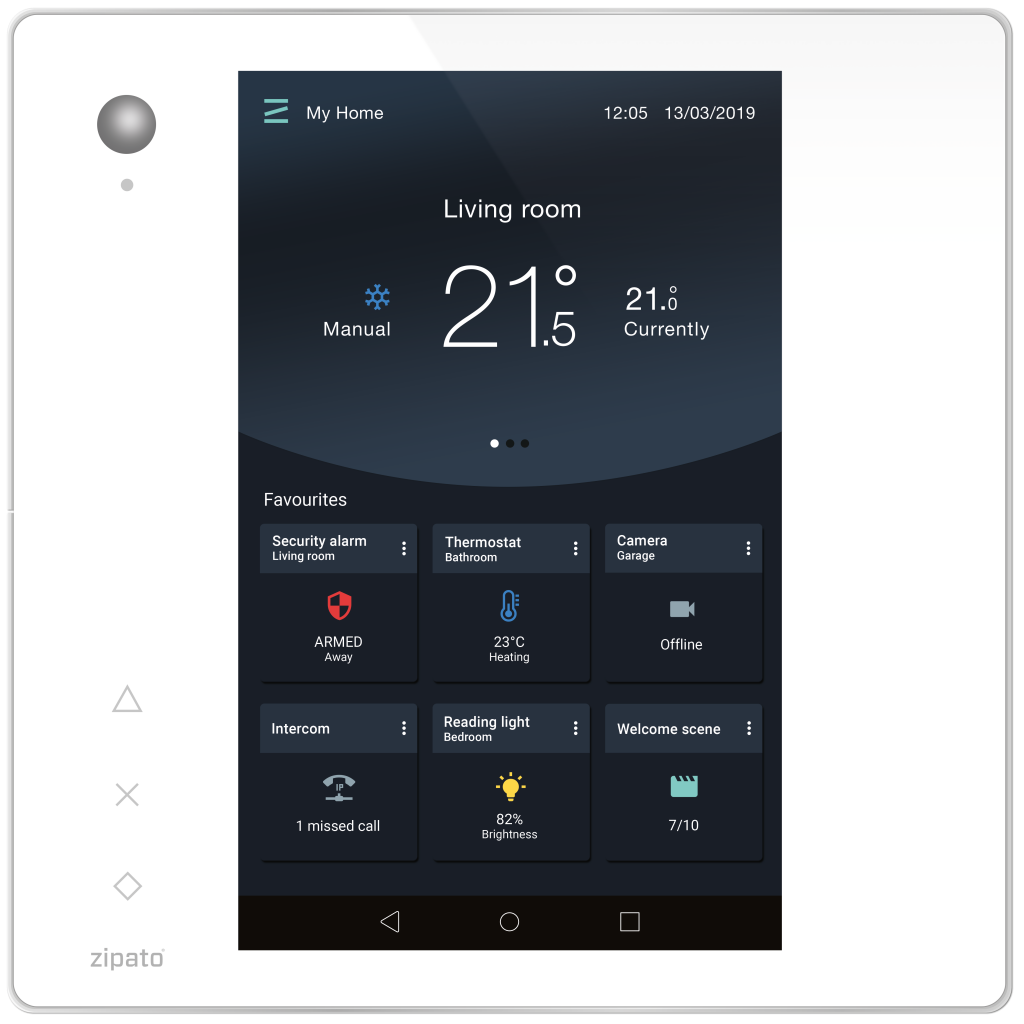

Zipatile2 is our best touch controller. It is is the wall mount digital touch panel based on Android OS, which has multiple sensors and communication modules integrated inside (please check the technical specifications). Powered by the powerful Zipato software platform, ZipaTile2 will replace multiple standard automation and control systems, such as security, thermostat, a monitoring camera, etc.
ZipaTile2 can be easily mounted on any wall. The power plug can be used with the regular wall socket. Connection with the Internet can be wireless, as well as the connection with various peripheral devices if you decide to upgrade the system.
ZipaTile2 has the complete security software integrated inside, and it can be controlled both locally and remotely, over any PC or smartphone. It has touch display for local control, motion sensor, noise sensor, alarm siren and IP video camera built in already. Furthermore, it can be additionally upgraded by using various wireless sensors, and it has been constantly monitored by the Zipato online monitoring server.
